Item # bci3374507

The Hardware Resources 22855-6-000N has been discontinued

** See similar or replacement items below **

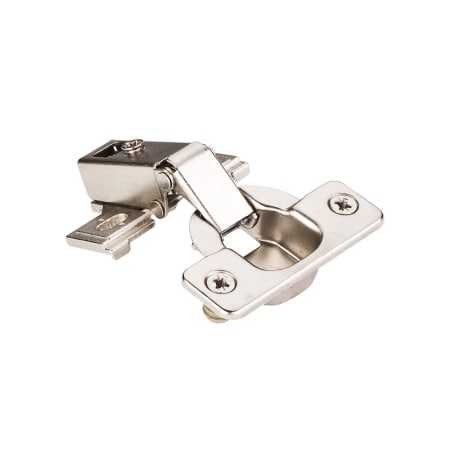

Hardware Resources 22855 Series 1/2 Inch Overlay Adjustable Concealed Euro Hinge with 125 Degree Opening Anglefor Face Frame Cabinets - Single Hinge

Model: 22855-6-000N

from the 22855 Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Features:

  • Includes one (1) overlay cabinet hinge
  • Heavy duty steel construction adds durability and a long lifespan
  • Designed for a 125 degree opening angle
  • Mounting hardware is not included with this product
  • All Hardware Resources cabinet hardware comes with a limited lifetime warranty

Product Technologies:

  • 1/2 Inch Overlay: A 3/4" overlay hinge is needed when the cabinet door you are mounting leaves 3/4" of the cabinet wall exposed. 3/4" overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.

Specifications:

  • Bore Distance: 3 mm
  • Hinge Mount: 1/2 Inch Overlay
  • Opening Angle: 125°
  • Material: Steel
  • Installation Type: Screw
  • Quantity: 1
  • Quantity: 1

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Boring Distance
3 mm
Opening Angle
125
Overlay
3/4 Inch
Quantity
1

Characteristics and Features

3-Way Adjustable
Yes
Adjustable
Yes
Adjustable Depth
Yes
Adjustable Height
Yes
Adjustable Side to Side
Yes
Cabinet Type
Face Frame
Hinge Type
Concealed Euro
Installation Type
Press Fit
Material
Steel

Warranty and Product Information

Approved for Commercial Use
No
BHMA Certification
Grade 1
Manufacturer Warranty
Limited Lifetime
Series
22855
