Item # bci2955836

The Hardware Resources 9572CL has been discontinued

** See similar or replacement items below **

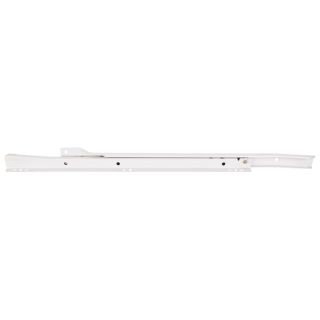

Hardware Resources 9500 Series 22.5 Inch 3/4 Extension Cabinet Left Side Mount Euro Drawer Slide with 100 Lbs. Weight Capacity and Self Close - 100 Pack

Model: 9572CL

from the 9500 Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Features:

  • Must be paired with product 9572DL (Purchase separately)
  • Designed to support up to 100 pounds of weight
  • Bottom mount construction adds stability and strength
  • Provides easy access to the drawer with 3/4 slide extension
  • Rail disconnect allows easy removal of drawer
  • Slides can be installed in panel (frameless) cabinets
  • Includes a limited lifetime manufacturer warranty

Product Technologies:

  • Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
  • Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.

Specifications:

  • Recommended Drawer Length: 22-1/2"
  • Slide Length: 22"
  • Extension Type: 3/4 Extension
  • Slide Type: Euro Slide
  • Weight Capacity: 100 lbs
  • Material: Steel
  • Cabinet Type: Panel
  • Quantity: 100
Product Variations:
  • 9500CL: 20 Inch Drawer Slide
  • 9572CL (This Model): 22.5 Inch Drawer Slide

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Drawer Length
22.5 in.
Extension
16.875 in.
Height
1.625 in.
Length
22.5 in.
Max Capacity (Pounds)
100 lbs.
Minimum Cabinet Depth
22.5 in.
Nominal Length
22 in.
Product Weight
38.06 lbs.
Quantity
100

Characteristics and Features

Adjustable
Yes
Cabinet Type
Panel (Frameless)
Detent
Yes
Disconnect Style
Rail
Extension Type
3/4 Extension
Function
Drawer Slide
Handing
Left
Installation Type
Bottom Mount
Material
Steel
Mounting Type
Bottom Mount, Side Mount
Push to Open
No
Self Closing
Yes
Slide Type
Euro Slide
Soft Close
No

Warranty and Product Information

Approved for Commercial Use
No
Collection
9400/9500
Manufacturer Warranty
Limited Lifetime
Series
9500
